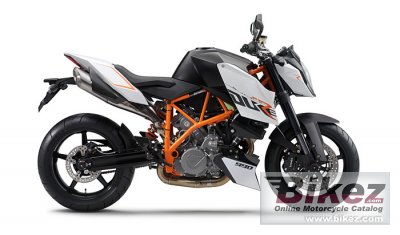

KTM 990 Super Duke R 20092009 KTM 990 Super Duke R specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | KTM 990 Super Duke R |
| Year model | 2009 |
| Type | Naked bike |
| Rating | 3.4 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 999.0 ccm (60.96 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 130.1 HP (94.9 kW)) @ 9000 RPM |
| Torque | 102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 7000 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 101.0 x 62.4 mm (4.0 x 2.5 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Keihin |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Lubrication system | Pressure lubrication |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Exhaust system | Stainless steel silencer with regulated catalytic converter |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium-Molybdenum trellis frame, powder coated. Aluminium 7020 subframe. |
| Rake (fork angle) | 22.7° |
| Front suspension | WP USD |
| Front wheel travel | 135 mm (5.3 inches) |
| Rear suspension | WP monoshock |
| Rear wheel travel | 160 mm (6.3 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc. 2 x Brembo four piston, radially bolted caliper |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Brembo single-piston floating caliper |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 186.0 kg (410.1 pounds) |
| Power/weight ratio | 0.6993 HP/kg |
| Seat height | 855 mm (33.7 inches) If adjustable, lowest setting. |
| Ground clearance | 150 mm (5.9 inches) |
| Wheelbase | 1450 mm (57.1 inches) |
| Fuel capacity | 18.50 litres (4.89 US gallons) |
| Reserve fuel capacity | 2.50 litres (0.66 US gallons) |
| Other specifications | |
| Color options | Orange/gray/white |
| Starter | Electric |
