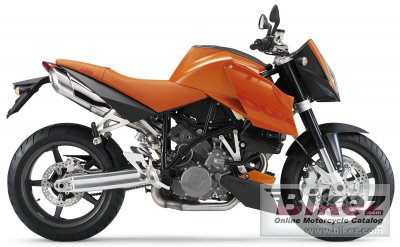

KTM 990 Super Duke Orange 20052005 KTM 990 Super Duke Orange specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | KTM 990 Super Duke Orange |
| Year model | 2005 |
| Type | Naked bike |
| Rating | 3.8 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 999.0 ccm (60.96 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 118.0 HP (86.1 kW)) @ 9000 RPM |
| Torque | 100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 7000 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 101.0 x 62.4 mm (4.0 x 2.5 inches) |
| Fuel system | Carburettor. Keihin MX FCR 41 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Kokusan digital 4K-3A |
| Lubrication system | Pressure lubrication |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium-molybdenum, powder-coated |
| Rake (fork angle) | 23.5° |
| Trail | 103 mm (4.1 inches) |
| Front suspension | WP-USD 48 mm (1.89´) |
| Rear suspension | WP - Monoshock |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc. 4-piston caliper |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. 1-piston caliper |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 184.0 kg (405.7 pounds) |
| Power/weight ratio | 0.6413 HP/kg |
| Seat height | 855 mm (33.7 inches) If adjustable, lowest setting. |
| Overall height | 990 mm (39.0 inches) |
| Ground clearance | 165 mm (6.5 inches) |
| Wheelbase | 1438 mm (56.6 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Other specifications | |
| Color options | Orange |
| Starter | Electric |
