| KTM's profilation of this bike |
| You can barely and #64257;nd words to express the riding fun and the feeling that the KTM 990 Super Duke gives you when it’s in motion. Just as KTM re-invented the Street and #64257;ghter, you try to invent new words for what happens beneath you curve after curve. |
|
General information |
|
Motorcycle name
|

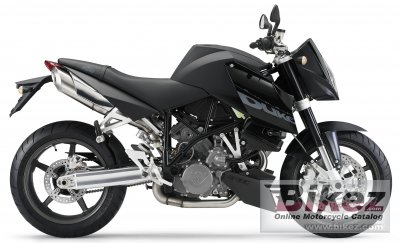

KTM 990 Super Duke Black |
|
Model year
|
2005 |
|
Category
|
Naked bike |
|
Rating
|
3.7 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
999.0 ccm (60.96 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
118.0 HP (86.1 kW)) @ 9000 RPM |
|
Torque
|
100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 7000 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
101.0 x 62.4 mm (4.0 x 2.5 inches) |
|
Fuel system
|
Carburettor. Keihin MX FCR 41 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Kokusan digital 4K-3A |
|
Lubrication system
|
Pressure lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium-molybdenum, powder-coated |
|
Rake (fork angle)
|
23.5° |
|
Trail
|
103 mm (4.1 inches) |
|
Front suspension
|
WP-USD 48 mm (1.89´) |
|
Rear suspension
|
WP - Monoshock |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
184.0 kg (405.7 pounds) |
|
Power/weight ratio
|
0.6413 HP/kg |
|
Seat height
|
855 mm (33.7 inches) If adjustable, lowest setting. |
|
Overall height
|
990 mm (39.0 inches) |
|
Ground clearance
|
165 mm (6.5 inches) |
|
Wheelbase
|
1438 mm (56.6 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
