| KTM's profilation of this bike |
| You can barely and #64257;nd words to express the riding fun and the feeling that the KTM 990 Super Duke gives you when it’s in motion. Just as KTM re-invented the Street and #64257;ghter, you try to invent new words for what happens beneath you curve after curve. |
|
General information |
|
Motorcycle name
|

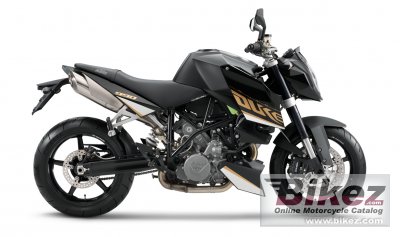

KTM 990 Super Duke |
|
Year model
|
2011 |
|
Type
|
Naked bike |
|
Rating
|
3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
999.0 ccm (60.96 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
118.0 HP (86.1 kW)) @ 9000 RPM |
|
Torque
|
100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 7000 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
101.0 x 62.4 mm (4.0 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Keihin EFI with EPT (Electric Power Throttle) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressure lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet mDouble disk clutch, operated hydraulically |
|
Driveline
|
16:38. Primary drive: 67:35. |
|
Exhaust system
|
Stainless steel silencer with regulated catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium-Molybdenum trellis frame, powder coated. Subframe: Aluminium 7020. |
|
Rake (fork angle)
|
23.9° |
|
Trail
|
101 mm (4.0 inches) |
|
Front suspension
|
WP USD 48 mm (1.89 in) |
|
Front wheel travel
|
140 mm (5.5 inches) |
|
Rear suspension
|
WP mono shock |
|
Rear wheel travel
|
140 mm (5.5 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
Cast aluminium wheels 3.5 x 17in., 5.5 x 17in. |
|
Physical measures and capacities |
|
Dry weight
|
186.0 kg (410.1 pounds) |
|
Power/weight ratio
|
0.6345 HP/kg |
|
Seat height
|
850 mm (33.5 inches) If adjustable, lowest setting. |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Wheelbase
|
1450 mm (57.1 inches) |
|
Fuel capacity
|
18.50 litres (4.89 US gallons) |
|
Other specifications |
|
Color options
|
Orange/black |
|
Starter
|
Electric |
