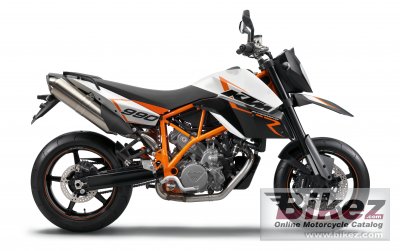

KTM 990 SM R 20132013 KTM 990 SM R specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| A state-of-the-art V2 engine with electronic injection and impressive punch, a perfectly balanced chassis, a whole bunch of high-quality components - the 990 SM R is the most radical twin-cylinder Supermoto on the market - and, in its latest form, it is still just as dynamic, but much more economical and safer too, thanks to superb Bosch 9M+ and #8209;ABS. |
| General information | |
|---|---|
| Motorcycle name | KTM 990 SM R |
| Model year | 2013 |
| Category | Super motard |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 999.0 ccm (60.96 cubic inches) |
| Engine type | Twin, four-stroke |
| Engine details | 75° V arrangement |
| Power output | 114.0 HP (83.2 kW)) |
| Bore x stroke | 101.0 x 62.4 mm (4.0 x 2.5 inches) |
| Fuel system | Injection |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
| Lubrication system | Dry-sump lubrication with 2 rotor pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch / hydraulically operated |
| Driveline | 5/8 x 5/16 X Ring. Primary drive: 35:67. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular space frame made from chrome molybdenum steel, powder-coated |
| Rake (fork angle) | 24.4° |
| Front suspension | WP Suspension Up Side Down 4860 ROMA PA |
| Front wheel travel | 280 mm (11.0 inches) |
| Rear suspension | WP Suspension 4618 BAVP DCC |
| Rear wheel travel | 310 mm (12.2 inches) |
| Front brakes | Double disc. Floating disc. Four-piston calipers. Radially mounted. |
| Diameter | 305 mm (12.0 inches) |
| Rear brakes | Single disc. Two-piston calipers. |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 192.0 kg (423.3 pounds) |
| Power/weight ratio | 0.5937 HP/kg |
| Seat height | 875 mm (34.4 inches) If adjustable, lowest setting. |
| Ground clearance | 195 mm (7.7 inches) |
| Wheelbase | 1505 mm (59.3 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Other specifications | |
| Color options | Gray/white/orange |
| Starter | Electric |
