General information |
|
Model name
|

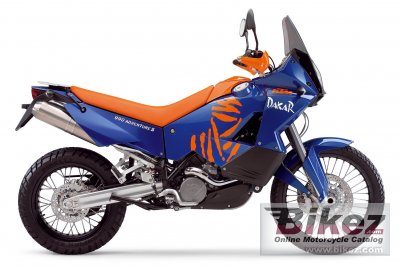

KTM 990 Adventure S |
|
Year model
|
2006 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
999.0 ccm (60.96 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Effect
|
96.6 HP (70.5 kW)) @ 8500 RPM |
|
Torque
|
95.0 Nm (9.7 kgf-m or 70.1 ft.lbs) @ 6000 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
101.0 x 62.5 mm (4.0 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Mikuni BST 40 |
|
Ignition
|
Denso battery ignition |
|
Lubrication system
|
Pressure lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
2 x premium steel with three-way-catalyser |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular chromoly space frame, powder-coated |
|
Rake (fork angle)
|
26.6° |
|
Trail
|
119 mm (4.7 inches) |
|
Front suspension
|
WP-USD 48 mm (1.89 inches) |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP-PDS shock absorber with hydr. spring preload |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
150/70-18 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
199.0 kg (438.7 pounds) |
|
Power/weight ratio
|
0.4852 HP/kg |
|
Seat height
|
895 mm (35.2 inches) If adjustable, lowest setting. |
|
Overall width
|
990 mm (39.0 inches) |
|
Ground clearance
|
296 mm (11.7 inches) |
|
Wheelbase
|
1570 mm (61.8 inches) |
|
Fuel capacity
|
22.00 litres (5.81 US gallons) |
|
Other specifications |
|
Color options
|
Blue/orange |
|
Comments
|
Not available in the US. |
