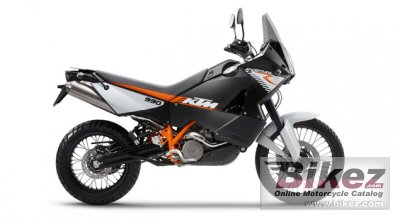

KTM 990 Adventure R 20132013 KTM 990 Adventure R specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| How do you make the most capable travel enduro in the world for offroad use even sportier? KTM has the formula: Even more V2 power, a lower centre of gravity, a tauter chassis set-up and the 990 Adventure R becomes an even bigger scourge of the superbikes, without relinquishing its fundamental tourer qualities. A supreme sports model for power travellers that cuts just as good a figure on a long trip as it does winding through the curves. |
| General information | |
|---|---|
| Model name | KTM 990 Adventure R |
| Year model | 2013 |
| Type | Super motard |
| Rating | 3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 999.0 ccm (60.96 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | 75° V arrangement, |
| Effect | 113.3 HP (82.7 kW)) |
| Bore x stroke | 101.0 x 62.4 mm (4.0 x 2.5 inches) |
| Fuel system | Injection |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
| Lubrication system | Dry-sump lubrication with 2 rotor pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch / hydraulically operated |
| Driveline | 5/8 x 5/16 X Ring. Primary drive: 35:67. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular space frame made from chrome molybdenum steel, powder-coated |
| Rake (fork angle) | 26.6° |
| Front suspension | WP Suspension Up Side Down 4860 MXMA PA |
| Front wheel travel | 190 mm (7.5 inches) |
| Rear suspension | WP Suspension PDS 5018 DCC PA |
| Rear wheel travel | 190 mm (7.5 inches) |
| Front brakes | Double disc. Floating disc. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. Floating disc. |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 207.0 kg (456.4 pounds) |
| Power/weight ratio | 0.5474 HP/kg |
| Seat height | 905 mm (35.6 inches) If adjustable, lowest setting. |
| Ground clearance | 301 mm (11.9 inches) |
| Wheelbase | 1570 mm (61.8 inches) |
| Fuel capacity | 20.00 litres (5.28 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric |
| Comments | Small windscreen. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 13 KTM 990 Adventure R discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Rate motorcycles you know
Rate motorcycles you know and help your fellow riders to find the bike that is right for them. Bikez has the most users and the most extensive motorcycle rating on the net. It includes reliability, design, engine performance, accident risk, repair cost, offroad capabilities, racing track capabilities and touring capabilities. The ratings are also used to rank the 100 most popular MC models each year since 1990. The lists are adjusted weekly as new ratings are added. You can check out the rating of the 2013 KTM 990 Adventure R and compare it to other bikes here.| Rating sample for this KTM bike | |
Racing track capabilities for the 2013 KTM 990 Adventure R:  (49.0 out of 100)Click here for complete rating. |
|
