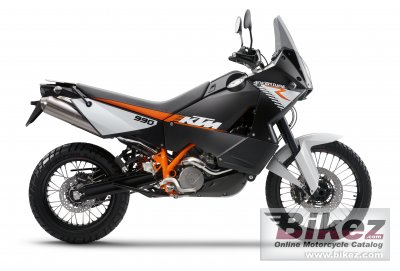

KTM 990 Adventure R 20122012 KTM 990 Adventure R specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| How do you make the most capable travel enduro in the world for offroad use even sportier? KTM has the formula: Even more V2 power, a lower centre of gravity, a tauter chassis set-up and the 990 Adventure R becomes an even bigger scourge of the superbikes, without relinquishing its fundamental tourer qualities. |
| General information | |
|---|---|
| Model | KTM 990 Adventure R |
| Model year | 2012 |
| Category | Super motard |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 999.0 ccm (60.96 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | V 75° |
| Power output | 113.3 HP (82.7 kW)) @ 4000 RPM |
| Torque | 100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 6750 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 101.0 x 62.4 mm (4.0 x 2.5 inches) |
| Fuel system | Injection. Keihin |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
| Lubrication system | Dry-sump lubrication with 2 rotor pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch / hydraulically operated |
| Driveline | 16:42. Primary drive: 35:67. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular space frame made from chrome molybdenum steel, powder-coated |
| Rake (fork angle) | 26.6° |
| Trail | 119 mm (4.7 inches) |
| Front suspension | WP Suspension Up Side Down 4860 MXMA PA |
| Front wheel travel | 245 mm (9.6 inches) |
| Rear suspension | WP Suspension PDS 5018 DCC PA |
| Rear wheel travel | 245 mm (9.6 inches) |
| Front tire | 90/90-21 |
| Rear tire | 150/70-R18 |
| Front brakes | Double disc. Floating brake calipers and brake discs |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. Floating brake caliper and brake disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 207.0 kg (456.4 pounds) |
| Power/weight ratio | 0.5474 HP/kg |
| Seat height | 905 mm (35.6 inches) If adjustable, lowest setting. |
| Ground clearance | 301 mm (11.9 inches) |
| Wheelbase | 1570 mm (61.8 inches) |
| Fuel capacity | 19.50 litres (5.15 US gallons) |
| Other specifications | |
| Color options | Black/orange/white |
| Starter | Electric |
