| KTM's profilation of this bike |
| With the 990 Adventure R, KTM presents the new spearhead of the Adventure family. Overwhelmingly superior, due to the reworked engine with approximately 20 % increase in power that delivers unrivalled performance. Outstanding, thanks to the amazingly sporty chassis and 265 mm suspension travel. |
|
General information |
|
Motorcycle name
|

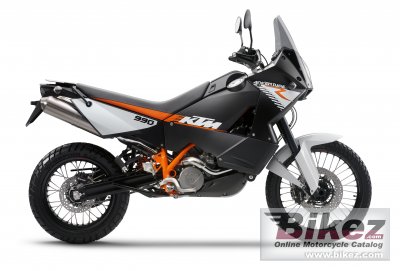

KTM 990 Adventure R |
|
Model year
|
2011 |
|
Category
|
Super motard |
|
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
999.0 ccm (60.96 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
V 75° |
|
Power output
|
113.3 HP (82.7 kW)) @ 8750 RPM |
|
Torque
|
100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 6750 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
101.0 x 62.4 mm (4.0 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Keihin |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet mDouble disk clutch, operated hydraulically |
|
Driveline
|
16:42. Primary drive: 35:67. |
|
Exhaust system
|
Twin stainless steel silencer with regulated catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium-Molybdenum trellis frame, powder-coated. Subframe: Aluminium. |
|
Rake (fork angle)
|
26.6° |
|
Trail
|
119 mm (4.7 inches) |
|
Front suspension
|
WP USD 48 mm |
|
Front wheel travel
|
210 mm (8.3 inches) |
|
Rear suspension
|
WP mono shock PDS with hydr. spring preload |
|
Rear wheel travel
|
210 mm (8.3 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
150/70-R18 |
|
Front brakes
|
Double disc. ABS |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
2.15 x 21in., 4.25 x 18in. |
|
Physical measures and capacities |
|
Dry weight
|
207.0 kg (456.4 pounds) |
|
Power/weight ratio
|
0.5474 HP/kg |
|
Seat height
|
915 mm (36.0 inches) If adjustable, lowest setting. |
|
Ground clearance
|
316 mm (12.4 inches) |
|
Wheelbase
|
1570 mm (61.8 inches) |
|
Fuel capacity
|
19.50 litres (5.15 US gallons) |
|
Other specifications |
|
Color options
|
Black |
