KTM 990 Adventure R 20102010 KTM 990 Adventure R specifications, pictures, reviews and rating |

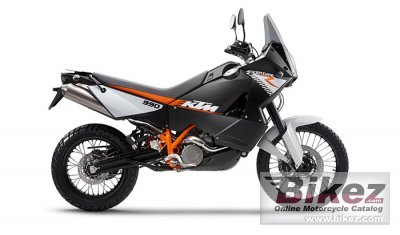

2010 KTM 990 Adventure R. Image credits - KTM.
| KTM's profilation of this bike |
| With the 990 Adventure R, KTM presents the new spearhead of the Adventure family. Overwhelmingly superior, due to the reworked engine with approximately 20 % increase in power that delivers unrivalled performance. |
| General information | |
|---|---|
| Motorcycle name | KTM 990 Adventure R |
| Year | 2010 |
| Category | Enduro / offroad |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 999.0 ccm (60.96 cubic inches) |
| Engine type | Twin, four-stroke |
| Power | 113.3 HP (82.7 kW)) @ 8750 RPM |
| Torque | 100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 6750 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 101.0 x 62.4 mm (4.0 x 2.5 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Keihin electronic injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Keihin EMS |
| Lubrication system | Pressure lubrication |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Clutch | Wet mDouble disk clutch, operated hydraulically |
| Exhaust system | Twin stainless steel silencer with regulated catalytic converter |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium-Molybdenum trellis frame, powder-coated |
| Rake (fork angle) | 26.6° |
| Trail | 119 mm (4.7 inches) |
| Front suspension | WP USD fork |
| Front wheel travel | 265 mm (10.4 inches) |
| Rear suspension | WP mono shock PDS with hydr. spring preload |
| Rear wheel travel | 265 mm (10.4 inches) |
| Front tire | 90/90-21 |
| Rear tire | 150/70-18 |
| Front brakes | Double disc. 2 x Brembo two piston, floating caliper, floating brake disc. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. Brembo two piston, floating caliper, floating brake disc. |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 207.0 kg (456.4 pounds) |
| Power/weight ratio | 0.5474 HP/kg |
| Seat height | 915 mm (36.0 inches) If adjustable, lowest setting. |
| Ground clearance | 316 mm (12.4 inches) |
| Wheelbase | 1570 mm (61.8 inches) |
| Fuel capacity | 19.50 litres (5.15 US gallons) |
| Other specifications | |
| Color options | Black/gray/orange |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 KTM 990 Adventure R discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
