| KTM's profilation of this bike |
| With even more displacement, an electronic fuel injection, regulated catalytic converter and an ABS System, the 990 Adventure is now elevated to the highest technical level in matters of safety and emission control, which is now regulated to conform to EURO III standards. |
|
General information |
|
Motorcycle name
|

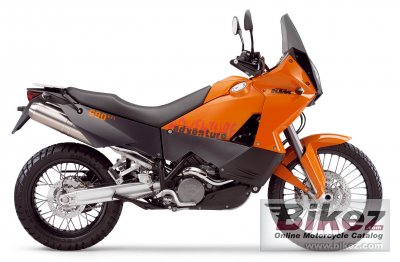

KTM 990 Adventure Orange |
|
Year of manufacture
|
2006 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
999.0 ccm (60.96 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Output
|
96.6 HP (70.5 kW)) @ 8500 RPM |
|
Torque
|
95.0 Nm (9.7 kgf-m or 70.1 ft.lbs) @ 6000 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
101.0 x 62.5 mm (4.0 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Mikuni BST 40 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Denso battery ignition |
|
Lubrication system
|
Pressure lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
2 x premium steel with three-way-catalyser |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular chromoly space frame, powder-coated |
|
Rake (fork angle)
|
26.6° |
|
Trail
|
119 mm (4.7 inches) |
|
Front suspension
|
WP-USD 48 mm (1.89 inches) |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP-PDS shock absorber with hydr. spring preload |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
150/70-18 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
199.0 kg (438.7 pounds) |
|
Power/weight ratio
|
0.4852 HP/kg |
|
Seat height
|
860 mm (33.9 inches) If adjustable, lowest setting. |
|
Overall width
|
990 mm (39.0 inches) |
|
Ground clearance
|
261 mm (10.3 inches) |
|
Wheelbase
|
1570 mm (61.8 inches) |
|
Fuel capacity
|
22.00 litres (5.81 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Not available in the US. |
