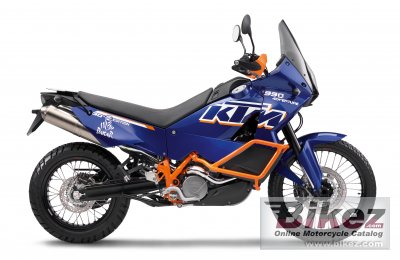

KTM 990 Adventure Dakar 20112011 KTM 990 Adventure Dakar specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | KTM 990 Adventure Dakar |
| Year | 2011 |
| Category | Super motard |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 999.0 ccm (60.96 cubic inches) |
| Engine type | V2, two-stroke |
| Engine details | V 75° |
| Power | 115.0 HP (83.9 kW)) @ 8750 RPM |
| Torque | 100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 6750 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 101.0 x 62.4 mm (4.0 x 2.5 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Keihin |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Lubrication system | Pressure lubrication |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet mDouble disk clutch, operated hydraulically |
| Driveline | 16:42. Primary drive: 35:67. X-Ring 5/8 x 5/16. |
| Exhaust system | Twin stainless steel silencer with regulated catalytic converter |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium-Molybdenum trellis frame, powder-coated. Subframe: Aluminium. |
| Rake (fork angle) | 26.6° |
| Trail | 119 mm (4.7 inches) |
| Front suspension | WP USD 48 mm |
| Front wheel travel | 211 mm (8.3 inches) |
| Rear suspension | WP-PDS shock, preload adjustable |
| Rear wheel travel | 211 mm (8.3 inches) |
| Front tire | 90/90-21 |
| Rear tire | 150/70-R18 |
| Front brakes | Double disc. floating disc, Brembo twin-piston floating caliper, Bosch two-channel ABS. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. floating discs, Brembo twin-piston floating calipers |
| Diameter | 240 mm (9.4 inches) |
| Wheels | Saxess wire spoke wheels |
| Physical measures and capacities | |
| Dry weight | 209.6 kg (462.0 pounds) |
| Power/weight ratio | 0.5488 HP/kg |
| Seat height | 861 mm (33.9 inches) If adjustable, lowest setting. |
| Ground clearance | 261 mm (10.3 inches) |
| Wheelbase | 1570 mm (61.8 inches) |
| Fuel capacity | 19.68 litres (5.20 US gallons) |
| Other specifications | |
| Color options | Blue/orange |
| Starter | Electric |
