| KTM's profilation of this bike |
| There are many travel enduros. But when the asphalt comes to an end, it´s the end of the adventure road for most of them. By contrast, thanks to its authentic rallying heritage, the 990 Adventure is just as unlikely to avoid extended trips into the desert as surfing through the curves. |
|
General information |
|
Motorcycle name
|

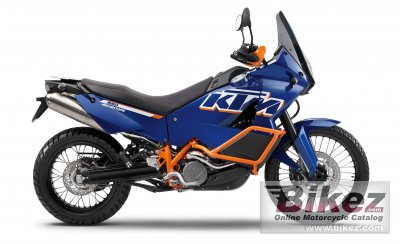

KTM 990 Adventure |
|
Year model
|
2012 |
|
Type
|
Super motard |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
999.0 ccm (60.96 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Engine details
|
V 75° |
|
Effect
|
113.3 HP (82.7 kW)) @ 4000 RPM |
|
Torque
|
100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 6750 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
101.0 x 62.4 mm (4.0 x 2.5 inches) |
|
Fuel system
|
Injection. Keihin |
|
Ignition
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
|
Lubrication system
|
Dry-sump lubrication with 2 rotor pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch / hydraulically operated |
|
Driveline
|
16:42. Primary drive: 35:67. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular space frame made from chrome molybdenum steel, powder-coated |
|
Rake (fork angle)
|
26.6° |
|
Trail
|
119 mm (4.7 inches) |
|
Front suspension
|
WP Suspension Up Side Down 4860 MXMA PA |
|
Front wheel travel
|
210 mm (8.3 inches) |
|
Rear suspension
|
WP Suspension PDS 5018 DCC PA |
|
Rear wheel travel
|
210 mm (8.3 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
150/70-R18 |
|
Front brakes
|
Double disc. Twin-disc brake with floating brake calipers and brake discs. ABS. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Floating brake caliper and brake disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
209.5 kg (461.9 pounds) |
|
Power/weight ratio
|
0.5409 HP/kg |
|
Seat height
|
880 mm (34.6 inches) If adjustable, lowest setting. |
|
Ground clearance
|
261 mm (10.3 inches) |
|
Wheelbase
|
1570 mm (61.8 inches) |
|
Fuel capacity
|
19.50 litres (5.15 US gallons) |
|
Other specifications |
|
Color options
|
White/orange/black |
|
Starter
|
Electric |
