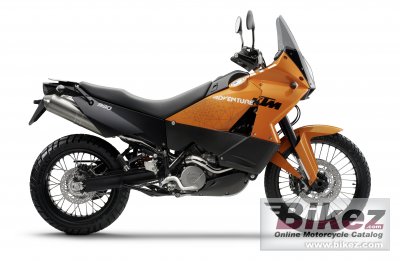

KTM 990 Adventure 20092009 KTM 990 Adventure specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| The 990 Adventure is fitted with the proven light weighted LC8 engine with an increased displacement of now 999 cc. In addition, new motor management guarantees a powerful and dynamic unfolding of power and significantly improved torque while maintaining the same level of top performance. |
| General information | |
|---|---|
| Model | KTM 990 Adventure |
| Year model | 2009 |
| Type | Enduro / offroad |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 999.0 ccm (60.96 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 104.6 HP (76.3 kW)) @ 8250 RPM |
| Torque | 100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 6750 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 101.0 x 62.4 mm (4.0 x 2.5 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Keihin electronic fuel injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Denso battery ignition |
| Lubrication system | Pressure lubrication |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Exhaust system | 2 x premium steel with three-way-catalyser |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium-Molybdenum trellis frame, powder-coated |
| Rake (fork angle) | 26.6° |
| Trail | 119 mm (4.7 inches) |
| Front suspension | WP USD, 48 mm |
| Front wheel travel | 210 mm (8.3 inches) |
| Rear suspension | WP monoshock PDS with hydraulic spring preload |
| Rear wheel travel | 210 mm (8.3 inches) |
| Front tire | 90/90-21 |
| Rear tire | 150/70-18 |
| Front brakes | Double disc. 2 x Brembo two piston, floating caliper, floating brake disc. ABS. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. Brembo two piston, floating caliper, floating brake disc. ABS. |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 209.0 kg (460.8 pounds) |
| Power/weight ratio | 0.5004 HP/kg |
| Seat height | 860 mm (33.9 inches) If adjustable, lowest setting. |
| Ground clearance | 261 mm (10.3 inches) |
| Wheelbase | 1570 mm (61.8 inches) |
| Fuel capacity | 19.50 litres (5.15 US gallons) |
| Other specifications | |
| Color options | Orange, black |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 KTM 990 Adventure discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
