| KTM's profilation of this bike |
| The KTM 950 Super Enduro R is the ideal bike for all those who want to tackle absolutely everything. During chassis tests it dismisses the roughest abuse. Over and over the WP absorber components plunge into action just in time. Even hard-core expert Giovanni is a bit surprised that the 950 Super Enduro R can be as good as new – even after copious amounts of high flying. “I might be worn out, but it seems you can’t kill off that thing!” |
|
General information |
|
Motorcycle name
|

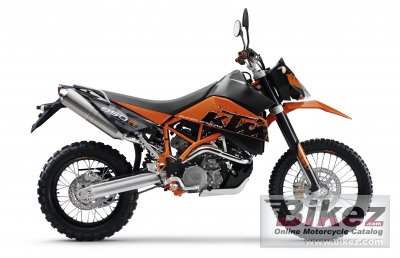

KTM 950 Super Enduro R |
|
Year of manufacture
|
2008 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
942.0 ccm (57.48 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
100.0 x 60.0 mm (3.9 x 2.4 inches) |
|
Fuel system
|
Carburettor. Keihin THB 46 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Denso battery ignition |
|
Lubrication system
|
Pressure lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
2 x stainless steel with catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular chromoly space frame, powder-coated |
|
Rake (fork angle)
|
25.4° |
|
Front suspension
|
WP USD |
|
Front wheel travel
|
250 mm (9.8 inches) |
|
Rear suspension
|
WP monoshock PDS |
|
Rear wheel travel
|
255 mm (10.0 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
185.0 kg (407.9 pounds) |
|
Seat height
|
950 mm (37.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
296 mm (11.7 inches) |
|
Wheelbase
|
1570 mm (61.8 inches) |
|
Fuel capacity
|
13.00 litres (3.43 US gallons) |
|
Other specifications |
|
Color options
|
Orange/black |
|
Starter
|
Electric |
