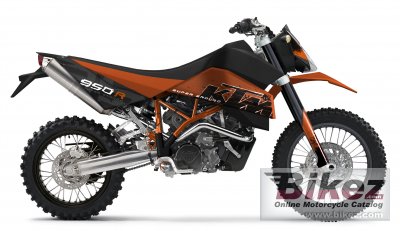

KTM 950 Super Enduro R 20062006 KTM 950 Super Enduro R specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| Massive power combined with easy, lightweight handling, optimal offroad features and a distinctive design and all offered for a reasonable price, make the 950 Super Enduro R the bike of choice in the new Enduro category. |
| General information | |
|---|---|
| Model | KTM 950 Super Enduro R |
| Year | 2006 |
| Category | Enduro / offroad |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 942.0 ccm (57.48 cubic inches) |
| Engine type | Twin, four-stroke |
| Power | 96.6 HP (70.5 kW)) @ 8500 RPM |
| Torque | 95.0 Nm (9.7 kgf-m or 70.1 ft.lbs) @ 7000 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 100.0 x 60.0 mm (3.9 x 2.4 inches) |
| Fuel system | Carburettor. Mikuni BST 40 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Denso battery ignition |
| Lubrication system | Pressure lubrication |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Exhaust system | 2 x stainless steel with catalytic converter |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular chromoly space frame, powder-coated |
| Rake (fork angle) | 25.4° |
| Trail | 119 mm (4.7 inches) |
| Front suspension | WP-USD 48 mm (1.89 inches) |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP monoshock |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 185.0 kg (407.9 pounds) |
| Power/weight ratio | 0.5219 HP/kg |
| Seat height | 920 mm (36.2 inches) If adjustable, lowest setting. |
| Overall width | 950 mm (37.4 inches) |
| Ground clearance | 296 mm (11.7 inches) |
| Wheelbase | 1570 mm (61.8 inches) |
| Fuel capacity | 13.00 litres (3.43 US gallons) |
| Other specifications | |
| Starter | Electric |
| Comments | Not available in the USA. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 KTM 950 Super Enduro R discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2006 KTM 950 Super Enduro R for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this KTM bike | |
Reliability for the 2006 KTM 950 Super Enduro R:  (70.6 out of 100)Click here for complete rating. |
|
