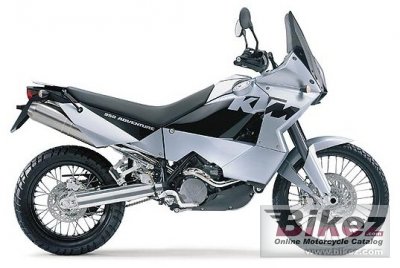

KTM 950 Adventure Silver - Orange - Black 20042004 KTM 950 Adventure Silver - Orange - Black specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| After a successful launch, the 950 Adventure will be available in three colours in 2004: silver, orange, and brand-new in black. In addition all models will be equipped with black anodised rims. |
| General information | |
|---|---|
| Motorcycle name | KTM 950 Adventure Silver - Orange - Black |
| Year of manufacture | 2004 |
| Type | Enduro / offroad |
| Rating | 4.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 942.0 ccm (57.48 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 96.6 HP (70.5 kW)) @ 8000 RPM |
| Torque | 95.0 Nm (9.7 kgf-m or 70.1 ft.lbs) @ 6000 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 100.0 x 60.0 mm (3.9 x 2.4 inches) |
| Fuel system | Carburettor |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular chromoly space frame, power-coated |
| Front suspension | WP-USD 48 MA |
| Rear suspension | WP-PDS suspension strut with hydr. spring preload |
| Front tire | 90/90-21 |
| Front brakes | Double disc |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 198.0 kg (436.5 pounds) |
| Power/weight ratio | 0.4876 HP/kg |
| Seat height | 880 mm (34.6 inches) If adjustable, lowest setting. |
| Alternate seat height | 675 mm (26.6 inches) If adjustable, highest setting. |
| Overall height | 950 mm (37.4 inches) |
| Overall width | 950 mm (37.4 inches) |
| Ground clearance | 281 mm (11.1 inches) |
| Wheelbase | 1570 mm (61.8 inches) |
| Fuel capacity | 22.00 litres (5.81 US gallons) |
| Other specifications | |
| Color options | Orange, Silver, Black |
| Comments | Silver not available in the US. |
| Update specs | Report missing specs or required updates. |
