KTM 950 Adventure S 20062006 KTM 950 Adventure S specifications, pictures, reviews and rating |

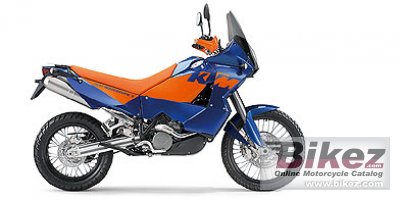

2006 KTM 950 Adventure S. Image credits - KTM.
| KTM's profilation of this bike |
| Due to its longer suspension travel and therefore a 35 mm higher seat, the KTM 950 Adventure S is somewhat sportier than its sister, the KTM 950 Adventure. Its direct derivation from the rally sport and the use of high quality components make it a reliable partner which has proven its qualities on any number of rallies. |
| General information | |
|---|---|
| Model name | KTM 950 Adventure S |
| Year | 2006 |
| Category | Enduro / offroad |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 942.0 ccm (57.48 cubic inches) |
| Engine type | Twin, four-stroke |
| Power | 96.6 HP (70.5 kW)) @ 8000 RPM |
| Torque | 95.0 Nm (9.7 kgf-m or 70.1 ft.lbs) @ 6000 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 100.0 x 60.0 mm (3.9 x 2.4 inches) |
| Fuel system | Carburettor. Mikuni BST 40 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Denso battery ignition |
| Lubrication system | Pressure lubrication |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Exhaust system | 2 x premium steel |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular chromoly space frame, powder-coated |
| Rake (fork angle) | 26.6° |
| Trail | 119 mm (4.7 inches) |
| Front suspension | WP-USD 48 mm (1.89 inches) |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP-PDS suspension strut with hydr. spring preload |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 90/90-21 |
| Rear tire | 150/70-18 |
| Front brakes | Double disc |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 198.0 kg (436.5 pounds) |
| Power/weight ratio | 0.4876 HP/kg |
| Seat height | 860 mm (33.9 inches) If adjustable, lowest setting. |
| Overall width | 950 mm (37.4 inches) |
| Ground clearance | 261 mm (10.3 inches) |
| Wheelbase | 1570 mm (61.8 inches) |
| Fuel capacity | 22.00 litres (5.81 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 KTM 950 Adventure S discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2006 KTM 950 Adventure S discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this KTM bike | |
Offroad capabilities for the 2006 KTM 950 Adventure S:  (75.9 out of 100)Click here for complete rating. |
|
