| KTM's profilation of this bike |
| High power output and ample torque, paired with an unbeatable weight in its class, guarantee super-agile handling and incomparable riding fun. The cahssis (lowered by about 20 mm) and the new, more comfortable seat (new at a reduced height of 860 mm) make the KTM 950 Adventure even more universal than before. |
|
General information |
|
Motorcycle name
|

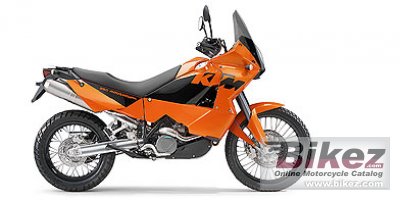

KTM 950 Adventure Orange |
|
Model year
|
2006 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
942.0 ccm (57.48 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Power output
|
96.6 HP (70.5 kW)) @ 8000 RPM |
|
Torque
|
55.0 Nm (5.6 kgf-m or 40.6 ft.lbs) @ 5500 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
100.0 x 60.0 mm (3.9 x 2.4 inches) |
|
Fuel system
|
Carburettor. Mikuni BST 40 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Denso battery ignition |
|
Lubrication system
|
Pressure lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
2 x premium steel |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular chromoly space frame, powder-coated |
|
Rake (fork angle)
|
26.6° |
|
Trail
|
119 mm (4.7 inches) |
|
Front suspension
|
WP-USD 48 mm (1.89 inches) |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP-PDS suspension strut with hydr. spring preload |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
150/70-18 |
|
Front brakes
|
Double disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
198.0 kg (436.5 pounds) |
|
Power/weight ratio
|
0.4876 HP/kg |
|
Seat height
|
860 mm (33.9 inches) If adjustable, lowest setting. |
|
Overall width
|
950 mm (37.4 inches) |
|
Ground clearance
|
261 mm (10.3 inches) |
|
Wheelbase
|
1570 mm (61.8 inches) |
|
Fuel capacity
|
22.00 litres (5.81 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 KTM 950 Adventure Orange discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this KTM bike
|
Touring capabilities for the 2006 KTM 950 Adventure Orange:
 (65.2 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
