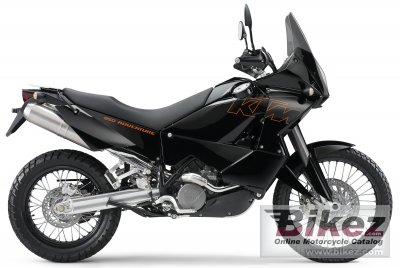

KTM 950 Adventure Black 20052005 KTM 950 Adventure Black specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | KTM 950 Adventure Black |
| Model year | 2005 |
| Category | Enduro / offroad |
| Rating | 3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 942.0 ccm (57.48 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 96.6 HP (70.5 kW)) @ 8000 RPM |
| Torque | 55.0 Nm (5.6 kgf-m or 40.6 ft.lbs) @ 5500 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 100.0 x 60.0 mm (3.9 x 2.4 inches) |
| Fuel system | Carburettor. Mikuni BST 40 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Denso battery ignition |
| Lubrication system | Pressure lubrication |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular chromoly space frame, power-coated |
| Rake (fork angle) | 26.6° |
| Trail | 119 mm (4.7 inches) |
| Front suspension | WP-USD 48 mm (1.89´) |
| Rear suspension | WP-PDS suspension strut with hydr. spring preload |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 90/90-21 |
| Rear tire | 150/70-18 |
| Front brakes | Double disc |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 198.0 kg (436.5 pounds) |
| Power/weight ratio | 0.4876 HP/kg |
| Seat height | 860 mm (33.9 inches) If adjustable, lowest setting. |
| Overall height | 950 mm (37.4 inches) |
| Overall width | 950 mm (37.4 inches) |
| Ground clearance | 261 mm (10.3 inches) |
| Wheelbase | 1570 mm (61.8 inches) |
| Fuel capacity | 22.00 litres (5.81 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric |
