| KTM's profilation of this bike |
| Fully revised, grown-up racing bike with more stable frame, 43 mm WP Upside Down fork and fully adjustable PDS system, strengthened clutch and transmission, new rear disk brake and much more. The centrifugal exhaust control system provides plenty of torque and top end performance. Seat height starts at 900 mm, for racers between 11-15 years. |
|
General information |
|
Motorcycle name
|

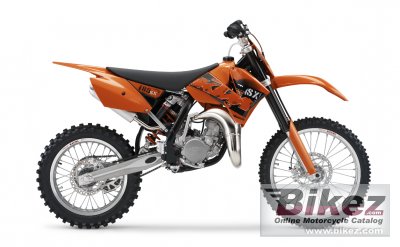

KTM 85 SX |
|
Model year
|
2006 |
|
Category
|
Minibike, cross |
|
Rating
|
3.4 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
84.9 ccm (5.18 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Bore x stroke
|
47.0 x 49.0 mm (1.9 x 1.9 inches) |
|
Fuel system
|
Carburettor. Keihin PWK 28 |
|
Ignition
|
Moric digital 2M1 |
|
Lubrication system
|
0,5 l Motorex Topspeed 4T |
|
Cooling system
|
Liquid |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
Aluminum |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium molybdenum |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
WP USD 43 mm (1.69 inches) |
|
Rear suspension
|
WP monoshock PDS |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
68.0 kg (149.9 pounds) |
|
Seat height
|
750 mm (29.5 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1290 mm (50.8 inches) |
|
Fuel capacity
|
5.00 litres (1.32 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
