| KTM's profilation of this bike |

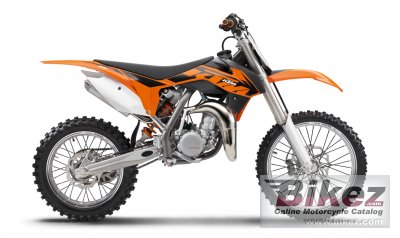

| Even professionals start off small. The KTM 85 SX 2013 is the perfect tool for mucky devils and those who want to become one. With its completely revamped chassis, new bodywork and a further refined, more powerful engine, it´s more competitive than ever before. |
|
General information |
|
Model name
|
KTM 85 SX 17-14 |
|
Year model
|
2013 |
|
Type
|
Cross / motocross |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
84.9 ccm (5.18 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Engine details
|
Reed intake. |
|
Bore x stroke
|
47.0 x 49.0 mm (1.9 x 1.9 inches) |
|
Ignition
|
Moric Digital 2M1 |
|
Lubrication system
|
Mixture oil lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multidisc clutch in oil bath/hydraulically activated |
|
Driveline
|
1/2 x 5/16 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central tube frame made of chrome molybdenum steel tubing |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
WP Suspension USD 35 |
|
Front wheel travel
|
205 mm (8.1 inches) |
|
Rear suspension
|
WP Suspension PDS 4618 BAVP DCC |
|
Rear wheel travel
|
185 mm (7.3 inches) |
|
Front brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
210 mm (8.3 inches) |
|
Physical measures and capacities |
|
Seat height
|
750 mm (29.5 inches) If adjustable, lowest setting. |
|
Ground clearance
|
280 mm (11.0 inches) |
|
Wheelbase
|
1290 mm (50.8 inches) |
|
Fuel capacity
|
5.00 litres (1.32 US gallons) |
|
Other specifications |
|
Color options
|
Orange/black |
|
Starter
|
Kick |
