KTM's profilation of this bike |
In the junior class from about 11 to 15 years, there are no longer any beginners pootling around. This is where future champions fight for victory and the best chance for a place on the podium is on the 85 SX. The reason why: Not only does it look like a full-size professional bike, it is one. |
General information |
Model name
|

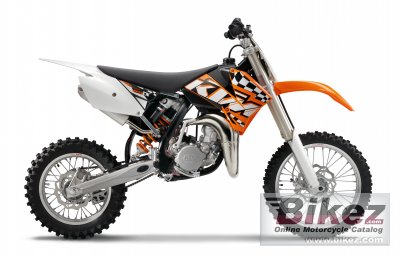

KTM 85 SX 17-14 |
Year
|
2011 |
Category
|
Minibike, cross |
Rating
|
3.1 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
84.9 ccm (5.18 cubic inches) |
Engine type
|
Single cylinder, two-stroke |
Bore x stroke
|
47.0 x 49.0 mm (1.9 x 1.9 inches) |
Fuel system
|
Carburettor. Keihin PWK 28 |
Ignition
|
Moric digital 2M1 |
Lubrication system
|
Mixture oil lubrication 1:40 |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet mDouble disk clutch, operated hydraulically |
Driveline
|
14:49. Primary drive: 19:66. |
Exhaust system
|
Aluminium |
Chassis, suspension, brakes and wheels |
Frame type
|
Double grinded central double-cradle-type frame. Subframe: Aluminium. |
Rake (fork angle)
|
24.0° |
Front suspension
|
WP USD 43 mm (1.69 in) |
Front wheel travel
|
185 mm (7.3 inches) |
Rear suspension
|
WP PDS mono shock |
Rear wheel travel
|
185 mm (7.3 inches) |
Front tire
|
70/100-17 |
Rear tire
|
90/100-14 |
Front brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Rear brakes
|
Single disc |
Diameter
|
210 mm (8.3 inches) |
Wheels
|
1.4 x 17in., 1.6 x 14in. Alu |
Physical measures and capacities |
Dry weight
|
66.0 kg (145.5 pounds) |
Seat height
|
845 mm (33.3 inches) If adjustable, lowest setting. |
Ground clearance
|
385 mm (15.2 inches) |
Wheelbase
|
1290 mm (50.8 inches) |
Fuel capacity
|
5.00 litres (1.32 US gallons) |
Other specifications |
Color options
|
Orange, black, white |
Starter
|
Kick |
