| KTM's profilation of this bike |
| Developed by professionals for the professionals of the future. With new technical highlights and a look which shows off your aim: the podium! |
|
General information |
|
Motorcycle name
|

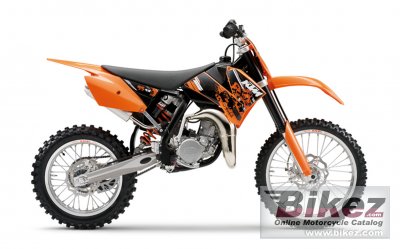

KTM 85 SX 17-14 |
|
Model year
|
2010 |
|
Category
|
Minibike, cross |
|
Rating
|
3.1 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
84.9 ccm (5.18 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Bore x stroke
|
47.0 x 49.0 mm (1.9 x 1.9 inches) |
|
Fuel system
|
Carburettor. Keihin PWK 28 |
|
Ignition
|
Moric digital 2M1 |
|
Lubrication system
|
Mixture oil lubrication 1:40 |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet mDouble disk clutch, operated hydraulically |
|
Exhaust system
|
Aluminium |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double grinded central double-cradle-type frame |
|
Rake (fork angle)
|
24.0° |
|
Trail
|
220 mm (8.7 inches) |
|
Front suspension
|
WP USD 43 mm fork |
|
Front wheel travel
|
280 mm (11.0 inches) |
|
Rear suspension
|
WP PDS mono shock |
|
Rear wheel travel
|
300 mm (11.8 inches) |
|
Front tire
|
70/100-17 |
|
Rear tire
|
90/100-14 |
|
Front brakes
|
Single disc. Bremo |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
66.0 kg (145.5 pounds) |
|
Seat height
|
845 mm (33.3 inches) If adjustable, lowest setting. |
|
Ground clearance
|
385 mm (15.2 inches) |
|
Wheelbase
|
1290 mm (50.8 inches) |
|
Fuel capacity
|
5.00 litres (1.32 US gallons) |
|
Other specifications |
|
Color options
|
Orange |
|
Starter
|
Kick |
