| KTM's profilation of this bike |
| For racers from 11 to 15 years old.
|
|
General information |
|
Motorcycle name
|

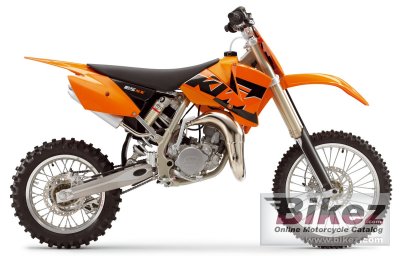

KTM 85 SX (17-14) |
|
Year of manufacture
|
2005 |
|
Type
|
Minibike, cross |
|
Rating
|
3.6 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
84.9 ccm (5.18 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Bore x stroke
|
47.0 x 49.0 mm (1.9 x 1.9 inches) |
|
Fuel system
|
Carburettor. Keihin PWK 28 |
|
Ignition
|
Moric digital 2M1 |
|
Cooling system
|
Liquid |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium molybdenum |
|
Rake (fork angle)
|
24.0° |
|
Trail
|
81 mm (3.2 inches) |
|
Front suspension
|
WP USD |
|
Front wheel travel
|
43 mm (1.7 inches) |
|
Rear suspension
|
WP PDS monoshock |
|
Front brakes
|
Single disc |
|
Diameter
|
216 mm (8.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
216 mm (8.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
68.0 kg (149.9 pounds) |
|
Seat height
|
900 mm (35.4 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1278 mm (50.3 inches) |
|
Fuel capacity
|
5.00 litres (1.32 US gallons) |
|
Other specifications |
