| KTM's profilation of this bike |
| New. Feeling Greedy? One look at the new 690 Supermoto says more than a thousand words. And a test ride says more than a thousand looks. So call the dealer, take a look, take a ride and be speechless. |
|
General information |
|
Model name
|

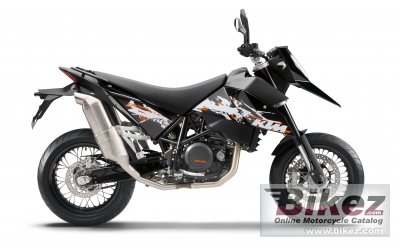

KTM 690 Supermoto Limited Edition |
|
Year
|
2011 |
|
Category
|
Super motard |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
654.0 ccm (39.91 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
62.8 HP (45.8 kW)) @ 7500 RPM |
|
Torque
|
65.0 Nm (6.6 kgf-m or 47.9 ft.lbs) @ 6500 RPM |
|
Compression
|
11.8:1 |
|
Bore x stroke
|
102.0 x 80.0 mm (4.0 x 3.1 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Kokusan digital |
|
Lubrication system
|
Pressure lubrication with 2 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
APTC slipper clutch, hydraulically operated |
|
Driveline
|
16:40. Primary drive: 36:79. |
|
Exhaust system
|
Twin stainless-steel silencer with regulated catalytic converters |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium-Molybdenum trellis frame, powder coated. Subframe: Aluminium 7020. |
|
Rake (fork angle)
|
26.5° |
|
Trail
|
115 mm (4.5 inches) |
|
Front suspension
|
WP USD 48 mm (1.89 in) |
|
Front wheel travel
|
210 mm (8.3 inches) |
|
Rear suspension
|
WP mono shock with Pro Lever Linkage |
|
Rear wheel travel
|
210 mm (8.3 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
160/60-R17 |
|
Front brakes
|
Single disc. ABS |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
Spoked wheels with aluminium rims, 3.5 x 17in., 5.0 x 17in. |
|
Physical measures and capacities |
|
Dry weight
|
154.0 kg (339.5 pounds) |
|
Power/weight ratio
|
0.4075 HP/kg |
|
Seat height
|
880 mm (34.6 inches) If adjustable, lowest setting. |
|
Ground clearance
|
245 mm (9.6 inches) |
|
Wheelbase
|
1472 mm (58.0 inches) |
|
Fuel capacity
|
13.50 litres (3.57 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
