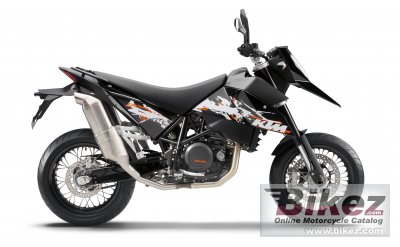

KTM 690 Supermoto Limited Edition 20102010 KTM 690 Supermoto Limited Edition specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| The beginning of a new legend: the new 690 Supermoto pulverizes all borders. From the high performance LC4 engine to the sporty six-gear transmission right up to the rally-tested exhaust system – it’s all been newly invented. |
| General information | |
|---|---|
| Model name | KTM 690 Supermoto Limited Edition |
| Model year | 2010 |
| Category | Super motard |
| Rating | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 654.0 ccm (39.91 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 62.8 HP (45.8 kW)) @ 7500 RPM |
| Torque | 65.0 Nm (6.6 kgf-m or 47.9 ft.lbs) @ 6500 RPM |
| Compression | 11.8:1 |
| Bore x stroke | 102.0 x 80.0 mm (4.0 x 3.1 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Keihin MX FCR 41 |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Kokusan |
| Lubrication system | Pressure lubrication with 2 oil pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | APTC slipper clutch, hydraulically operated |
| Exhaust system | Twin stainless-steel silencer with regulated catalytic converters |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium-Molybdenum trellis frame, powder coated |
| Rake (fork angle) | 26.5° |
| Trail | 115 mm (4.5 inches) |
| Front suspension | WP USDfork |
| Front wheel travel | 210 mm (8.3 inches) |
| Rear suspension | WP mono shock with Pro Lever Linkage |
| Rear wheel travel | 210 mm (8.3 inches) |
| Front tire | 120/70-17 |
| Rear tire | 160/60-17 |
| Front brakes | Single disc. Brembo four piston, radially bolted caliper |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Brembo single piston, floating caliper |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 154.0 kg (339.5 pounds) |
| Power/weight ratio | 0.4075 HP/kg |
| Seat height | 880 mm (34.6 inches) If adjustable, lowest setting. |
| Ground clearance | 245 mm (9.6 inches) |
| Wheelbase | 1472 mm (58.0 inches) |
| Fuel capacity | 13.50 litres (3.57 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric |
