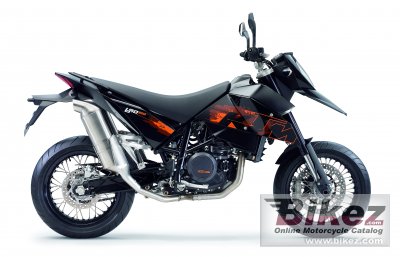

| KTM's profilation of this bike |
| The beginning of a new legend: the new 690 Supermoto pulverizes all borders. From the high performance LC4 engine to the sporty six-gear transmission right up to the rally-tested exhaust system – it’s all been newly invented.
|
|
General information |
|
Model
|
KTM 690 Supermoto |
|
Year of manufacture
|
2008 |
|
Type
|
Super motard |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
653.7 ccm (39.89 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
63.0 HP (46.0 kW)) @ 7500 RPM |
|
Torque
|
65.0 Nm (6.6 kgf-m or 47.9 ft.lbs) @ 6550 RPM |
|
Compression
|
11.7:1 |
|
Bore x stroke
|
102.0 x 80.0 mm (4.0 x 3.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin MX FCR 41 |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Kokusan digital |
|
Lubrication system
|
Pressure lubrication with 2 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
APTC multi-disc wet clutch, hydraulically operated |
|
Exhaust system
|
INOX double silencer with regulated catalytic converters |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromoly trellis frame, powder-coated |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
112 mm (4.4 inches) |
|
Front suspension
|
WP USD Ø 48 mm (1.89 |
|
Front wheel travel
|
280 mm (11.0 inches) |
|
Rear suspension
|
WP monoshock with Pro Lever |
|
Rear wheel travel
|
310 mm (12.2 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
160/60-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
152.0 kg (335.1 pounds) |
|
Power/weight ratio
|
0.4146 HP/kg |
|
Seat height
|
875 mm (34.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
260 mm (10.2 inches) |
|
Wheelbase
|
1460 mm (57.5 inches) |
|
Fuel capacity
|
13.20 litres (3.49 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
