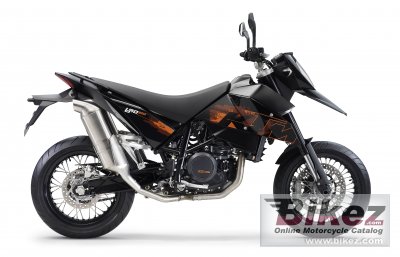

KTM 690 Supermoto 20072007 KTM 690 Supermoto specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| New. Feeling Greedy? One look at the new 690 Supermoto says more than a thousand words. And a test ride says more than a thousand looks. So call the dealer, take a look, take a ride and be speechless. |
| General information | |
|---|---|
| Model | KTM 690 Supermoto |
| Year | 2007 |
| Category | Super motard |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 653.7 ccm (39.89 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 63.0 HP (46.0 kW)) @ 7500 RPM |
| Torque | 65.0 Nm (6.6 kgf-m or 47.9 ft.lbs) @ 6550 RPM |
| Compression | 11.7:1 |
| Bore x stroke | 102.0 x 80.0 mm (4.0 x 3.1 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Mikuni BST 40 |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Kokusan DC-CDI |
| Lubrication system | Pressure lubrication with 2 oil pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Clutch | APTC multi-disc wet clutch, hydraulically operated |
| Exhaust system | INOX double silencer with regulated catalytic converters |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromoly trellis frame, powder-coated |
| Rake (fork angle) | 26.0° |
| Trail | 112 mm (4.4 inches) |
| Front suspension | WP USD |
| Front wheel travel | 115 mm (4.5 inches) |
| Rear suspension | WP monoshock with Pro Lever |
| Rear wheel travel | 185 mm (7.3 inches) |
| Front tire | 120/70-17 |
| Rear tire | 160/60-17 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 152.0 kg (335.1 pounds) |
| Power/weight ratio | 0.4146 HP/kg |
| Seat height | 875 mm (34.4 inches) If adjustable, lowest setting. |
| Ground clearance | 260 mm (10.2 inches) |
| Wheelbase | 1460 mm (57.5 inches) |
| Fuel capacity | 13.20 litres (3.49 US gallons) |
| Other specifications | |
| Color options | Black, orange |
| Starter | Electric & kick |
