| KTM's profilation of this bike |
| What isn´t there doesn´t weigh anything either - the new 690 SMC R is designed according to this motto. An even more powerful LC4 single-cylinder, a further improved chassis, even better and equally more comfortable Supermoto ergonomics - what could make a drifter happier? The new 690 SMC R is an unrivalled Supermoto for the most demanding requirements, which leaves all others in its wake: suitable for racing or everyday use, potent design, state-of-the-art. |
|
General information |
|
Model name
|

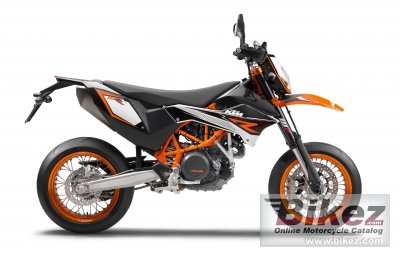

KTM 690 SMC R |
|
Year of manufacture
|
2013 |
|
Type
|
Super motard |
|
Rating
|
3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
690.0 ccm (42.10 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
65.7 HP (48.0 kW)) |
|
Bore x stroke
|
102.0 x 84.5 mm (4.0 x 3.3 inches) |
|
Fuel system
|
Injection |
|
Ignition
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
|
Lubrication system
|
Semi-dry-sump lubrication with 2 rotor pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
APTC Anti-hopping clutch / hydraulically operated |
|
Driveline
|
5/8 x 1/4 X Ring. Primary drive: 36:79. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular space frame made from chrome molybdenum steel, powder-coated |
|
Rake (fork angle)
|
27.0° |
|
Front suspension
|
WP Suspension Up Side Down 4860 ROMA |
|
Front wheel travel
|
280 mm (11.0 inches) |
|
Rear suspension
|
WP Suspension 4618 with Pro Lever linkage |
|
Rear wheel travel
|
310 mm (12.2 inches) |
|
Front brakes
|
Single disc. Floating disc. Four-piston calipers. Radially mounted. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Floating disc. Single-piston caliper. |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
142.0 kg (313.1 pounds) |
|
Power/weight ratio
|
0.4627 HP/kg |
|
Seat height
|
925 mm (36.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
270 mm (10.6 inches) |
|
Wheelbase
|
1480 mm (58.3 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Color options
|
Gray/white/orange |
|
Starter
|
Electric |
