| KTM's profilation of this bike |
| Razor-sharp Supermoto technology, in combination with state-of-the-art engine technology – the victorious 660 SMC has found a more than worthy successor in the 690 SMC. KTM has created an unequalled bike based on the new 690 Enduro that will live up to the toughest Supermoto demands and leave everyone else behind in more ways than one. |
|
General information |
|
Motorcycle name
|

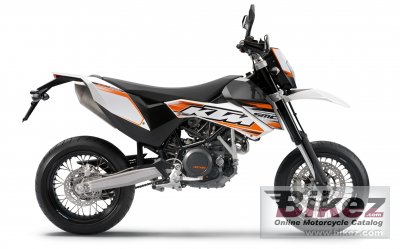

KTM 690 SMC |
|
Year of manufacture
|
2011 |
|
Type
|
Super motard |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
654.0 ccm (39.91 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
62.1 HP (45.3 kW)) @ 7500 RPM |
|
Torque
|
64.0 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 6000 RPM |
|
Compression
|
11.8:1 |
|
Bore x stroke
|
102.0 x 80.0 mm (4.0 x 3.1 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Keihin EMS |
|
Lubrication system
|
Pressure lubrication with 2 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
APTC slipper clutch, hydraulically operated |
|
Driveline
|
16:42. Primary drive: 36:79. |
|
Exhaust system
|
Stainless steel silencer with regulated catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium-Molybdenum trellis frame, powder coated. Subframe: Self-supporting plastics tank. |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
112 mm (4.4 inches) |
|
Front suspension
|
WP USD 48 mm (1.89 in) |
|
Front wheel travel
|
210 mm (8.3 inches) |
|
Rear suspension
|
WP mono shock with Pro Lever Linkage |
|
Rear wheel travel
|
210 mm (8.3 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
160/60-ZR17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
Spoked wheels with aluminium rims 3,5 x 17in., 5 x 17in. |
|
Physical measures and capacities |
|
Dry weight
|
139.5 kg (307.5 pounds) |
|
Power/weight ratio
|
0.4451 HP/kg |
|
Seat height
|
900 mm (35.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
290 mm (11.4 inches) |
|
Wheelbase
|
1480 mm (58.3 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Color options
|
Black/orange/white |
|
Starter
|
Electric |
