| KTM's profilation of this bike |
| KTM has created an unequalled bike based on the new 690 Enduro that will live up to the toughest Supermoto demands and leave everyone else behind in more ways than one. |
|
General information |
|
Motorcycle name
|

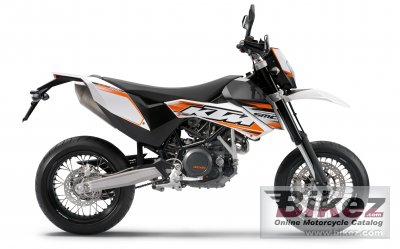

KTM 690 SMC |
|
Year model
|
2010 |
|
Type
|
Super motard |
|
Rating
|
3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
654.0 ccm (39.91 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Torque
|
64.0 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 6000 RPM |
|
Compression
|
11.8:1 |
|
Bore x stroke
|
102.0 x 80.0 mm (4.0 x 3.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Keihin EMS |
|
Lubrication system
|
Pressure lubrication with 2 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
APTC slipper clutch, hydraulically operated |
|
Exhaust system
|
Stainless steel silencer with regulated catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium-Molybdenum trellis frame, powder coated |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
112 mm (4.4 inches) |
|
Front suspension
|
WP USD Ø 48 mm (1.89 |
|
Front wheel travel
|
275 mm (10.8 inches) |
|
Rear suspension
|
WP mono shock with Pro Lever Linkage |
|
Rear wheel travel
|
265 mm (10.4 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
160/60-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
139.5 kg (307.5 pounds) |
|
Seat height
|
900 mm (35.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
290 mm (11.4 inches) |
|
Wheelbase
|
1480 mm (58.3 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Color options
|
Black/white/orange |
|
Starter
|
Electric |
