| KTM's profilation of this bike |
| Razor-sharp Supermoto technology, in combination with state-of-the-art engine technology – the victorious 660 SMC has found a more than worthy successor in the 690 SMC. KTM has created an unequalled bike based on the new 690 Enduro that will live up to the toughest Supermoto demands and leave everyone else behind in more ways than one. |
|
General information |
|
Motorcycle name
|

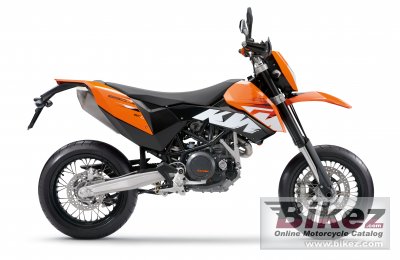

KTM 690 SMC |
|
Year
|
2009 |
|
Category
|
Super motard |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
654.0 ccm (39.91 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Torque
|
64.0 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 6000 RPM |
|
Compression
|
11.8:1 |
|
Bore x stroke
|
102.0 x 80.0 mm (4.0 x 3.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Keihin EMS with EPT (Electr. Power Throttle) |
|
Lubrication system
|
Semi-dry-sump lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
APTC Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
Stainless steel silencer with regulated catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular trellis steel frame (CrMo) |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
112 mm (4.4 inches) |
|
Front suspension
|
WP USD |
|
Front wheel travel
|
275 mm (10.8 inches) |
|
Rear suspension
|
WP mono shock with Pro Lever Linkage |
|
Rear wheel travel
|
265 mm (10.4 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
160/60-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
139.5 kg (307.5 pounds) |
|
Seat height
|
900 mm (35.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
290 mm (11.4 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Color options
|
Orange |
|
Starter
|
Electric |
