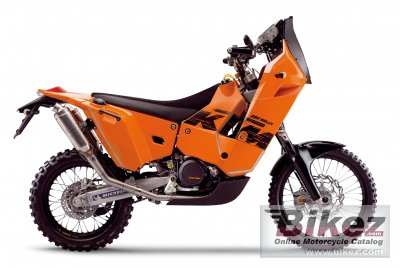

KTM 690 Rally Replica 20102010 KTM 690 Rally Replica specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | KTM 690 Rally Replica |
| Model year | 2010 |
| Category | Enduro / offroad |
| Rating | 3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 654.0 ccm (39.91 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 62.1 HP (45.3 kW)) @ 7500 RPM |
| Torque | 64.0 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 6000 RPM |
| Compression | 11.8:1 |
| Bore x stroke | 102.0 x 80.0 mm (4.0 x 3.1 inches) |
| Valves per cylinder | 4 |
| Fuel control | Overhead Cams (OHC) |
| Lubrication system | Pressure lubrication with 2 Eaton pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | APTC slipper clutch, hydraulically operated |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium-Molybdenum trellis frame, powder coated |
| Front suspension | WP USD |
| Front wheel travel | 275 mm (10.8 inches) |
| Rear suspension | WP mono shock with Pro Lever Linkage |
| Rear wheel travel | 275 mm (10.8 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 138.5 kg (305.3 pounds) |
| Power/weight ratio | 0.4482 HP/kg |
| Seat height | 930 mm (36.6 inches) If adjustable, lowest setting. |
| Ground clearance | 300 mm (11.8 inches) |
| Wheelbase | 1498 mm (59.0 inches) |
| Fuel capacity | 12.00 litres (3.17 US gallons) |
| Other specifications | |
| Color options | Orange |
| Starter | Electric |
