KTM 690 Rally Replica 20092009 KTM 690 Rally Replica specifications, pictures, reviews and rating |

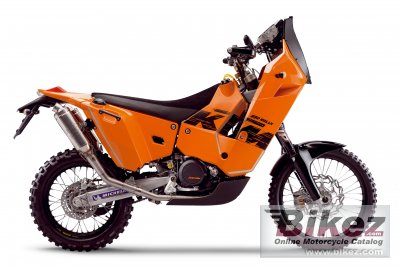

 2009 KTM 690 Rally Replica. Picture credits - KTM. Submit more pictures.
|
|
| General information | |
|---|---|
| Model: | KTM 690 Rally Replica |
| Year: | 2009 |
| Category: | Enduro / offroad |
| Rating: | 65 out of 100. Show full rating and compare with other bikes |
| Engine and transmission | |
| Displacement: | 654.00 ccm (39.91 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 62.08 HP (45.3 kW)) @ 7500 RPM |
| Torque: | 64.00 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 6000 RPM |
| Compression: | 11.8:1 |
| Bore x stroke: | 102.0 x 80.0 mm (4.0 x 3.1 inches) |
| Valves per cylinder: | 4 |
| Fuel control: | Overhead Cams (OHC) |
| Lubrication system: | Pressure lubrication with 2 Eaton pumps |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
| Transmission type, final drive: | Chain |
| Clutch: | APTC slipper clutch, hydraulically operated |
| Exhaust system: | Stainless steel silencer with regulated catalytic converter |
| Chassis, suspension, brakes and wheels | |
| Frame type: | Chromium-Molybdenum trellis frame, powder coated |
| Front suspension: | WP USD |
| Front wheel travel: | 275 mm (10.8 inches) |
| Rear suspension: | WP mono shock with Pro Lever Linkage |
| Rear wheel travel: | 275 mm (10.8 inches) |
| Front tyre: | 90/90-21 |
| Rear tyre: | 140/80-18 |
| Front brakes: | Single disc |
| Front brakes diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight: | 138.5 kg (305.3 pounds) |
| Power/weight ratio: | 0.4482 HP/kg |
| Seat height: | 930 mm (36.6 inches) If adjustable, lowest setting. |
| Fuel capacity: | 12.00 litres (3.17 gallons) |
| Other specifications | |
