KTM 690 Enduro R 20132013 KTM 690 Enduro R specifications, pictures, reviews and rating |

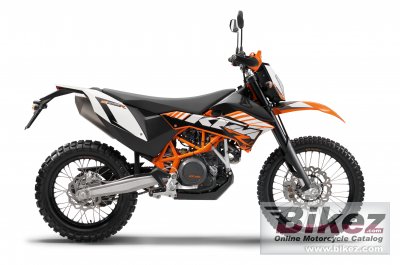

2013 KTM 690 Enduro R. Image credits - KTM.
| KTM's profilation of this bike |
| More powerful engine, new look, improved chassis set-up and optimised ergonomics - the new KTM 690 Enduro R combines outstanding offroad qualities with unbeatable all-round ability. It feels just as home in the city and on rural roads as it does on gravel and tough terrain. |
| General information | |
|---|---|
| Model | KTM 690 Enduro R |
| Year of manufacture | 2013 |
| Type | Enduro / offroad |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 690.0 ccm (42.10 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 65.7 HP (48.0 kW)) |
| Fuel system | Injection |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multidisc clutch in oil bath/hydraulically activated |
| Driveline | 5/8 x 1/4 X Ring |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular space frame made from chrome molybdenum steel, powder-coated |
| Rake (fork angle) | 27.0° |
| Front suspension | WP Suspension 4860 D48/26 MA |
| Front wheel travel | 292 mm (11.5 inches) |
| Rear suspension | WP Suspension 4618 with Pro Lever linkage |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front brakes | Single disc. Floating disc. Two-piston calipers. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. Floating disc. Single-piston caliper. |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 142.0 kg (313.1 pounds) |
| Power/weight ratio | 0.4627 HP/kg |
| Seat height | 935 mm (36.8 inches) If adjustable, lowest setting. |
| Ground clearance | 280 mm (11.0 inches) |
| Wheelbase | 1504 mm (59.2 inches) |
| Fuel capacity | 12.00 litres (3.17 US gallons) |
| Other specifications | |
| Color options | Orange/gray/white |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 13 KTM 690 Enduro R discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Rate motorcycles you know
Rate motorcycles you know and help your fellow riders to find the bike that is right for them. Bikez has the most users and the most extensive motorcycle rating on the net. It includes reliability, design, engine performance, accident risk, repair cost, offroad capabilities, racing track capabilities and touring capabilities. The ratings are also used to rank the 100 most popular MC models each year since 1990. The lists are adjusted weekly as new ratings are added. You can check out the rating of the 2013 KTM 690 Enduro R and compare it to other bikes here.| Rating sample for this KTM bike | |
Racing track capabilities for the 2013 KTM 690 Enduro R:  (62.0 out of 100)Click here for complete rating. |
|
