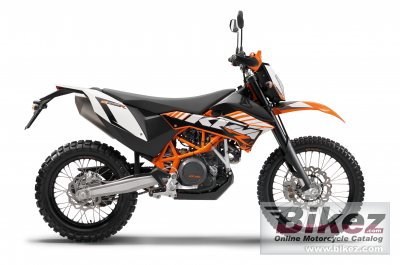

| KTM's profilation of this bike |
| More powerful engine, new look, improved chassis set-up and optimised ergonomics - the new KTM 690 Enduro R combines outstanding offroad qualities with unbeatable all-round ability. It feels just as home in the city and on rural roads as it does on gravel and tough terrain. |
|
General information |
|
Model name
|
KTM 690 Enduro R |
|
Model year
|
2012 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
654.0 ccm (39.91 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
65.7 HP (48.0 kW)) @ 7500 RPM |
|
Torque
|
64.0 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 6000 RPM |
|
Compression
|
11.8:1 |
|
Bore x stroke
|
102.0 x 80.0 mm (4.0 x 3.1 inches) |
|
Lubrication system
|
Pressure lubrication with 2 Eaton pumps |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
APTC slipper clutch, hydraulically operated |
|
Driveline
|
15:45. Primary drive: 36:79. 5/8 x 1/4” X and #8209;Ring chain. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular space frame made from chrome molybdenum steel, powder-coated |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
115 mm (4.5 inches) |
|
Front suspension
|
WP USD 48 mm (1.89 in) |
|
Front wheel travel
|
250 mm (9.8 inches) |
|
Rear suspension
|
WP Suspension 4618 with Pro‑Lever linkage |
|
Rear wheel travel
|
250 mm (9.8 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
142.0 kg (313.1 pounds) |
|
Power/weight ratio
|
0.4627 HP/kg |
|
Seat height
|
935 mm (36.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
280 mm (11.0 inches) |
|
Wheelbase
|
1504 mm (59.2 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Color options
|
Black/white/orange |
|
Starter
|
Electric |
