| KTM's profilation of this bike |
| For anyone looking for the ultimate all-rounder, the 690 Enduro is the right choice. It masters trails reserved otherwise only for EXC bikes, and is equally suitable for a trip to Morocco, travelling there by motorway. |
|
General information |
|
Motorcycle name
|

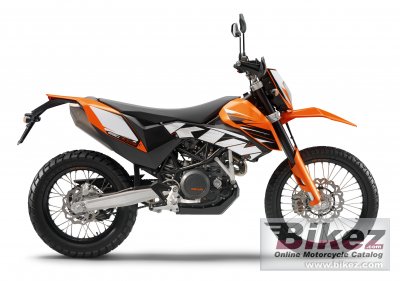

KTM 690 Enduro |
|
Year of manufacture
|
2010 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
654.0 ccm (39.91 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Torque
|
64.0 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 6000 RPM |
|
Compression
|
11.8:1 |
|
Bore x stroke
|
102.0 x 80.0 mm (4.0 x 3.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin EMS with EPT (Electr. Power Throttle) |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Keihin |
|
Lubrication system
|
Pressure lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
APTC slipper clutch, hydraulically operated |
|
Exhaust system
|
Stainless steel silencer with regulated catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium-Molybdenum trellis frame, powder coated |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
115 mm (4.5 inches) |
|
Front suspension
|
WP USDfork |
|
Front wheel travel
|
250 mm (9.8 inches) |
|
Rear suspension
|
WP mono shock with Pro Lever Linkage |
|
Rear wheel travel
|
250 mm (9.8 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-18 |
|
Front brakes
|
Single disc. Brembo two piston, floating caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Brembo single piston, floating caliper |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
138.5 kg (305.3 pounds) |
|
Seat height
|
910 mm (35.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
300 mm (11.8 inches) |
|
Wheelbase
|
1498 mm (59.0 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Color options
|
Orange/black/gray |
|
Starter
|
Electric |
