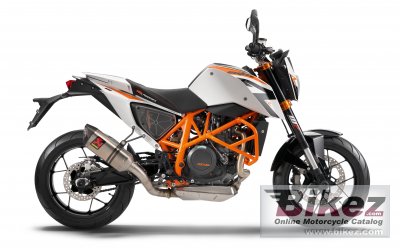

KTM 690 Duke R 20132013 KTM 690 Duke R specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| This formidable flicking tool for absolute pros and connoisseurs also benefits from the same suspension. The “R” chassis is higher, with stiffer springs and more damping than the 690 Duke. But above all, it is widely adjustable in order to span the complete bandwidth, from a relaxed back-roads swing to no-holdsbarred race track mayhem. |
| General information | |
|---|---|
| Model | KTM 690 Duke R |
| Year | 2013 |
| Category | Naked bike |
| Rating | 3.3 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 690.0 ccm (42.10 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 67.1 HP (48.9 kW)) |
| Bore x stroke | 102.0 x 84.5 mm (4.0 x 3.3 inches) |
| Fuel system | Injection |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
| Lubrication system | Semi-dry-sump lubrication with 2 rotor pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular space frame made from chrome molybdenum steel, powder-coated |
| Front suspension | WP |
| Front wheel travel | 190 mm (7.5 inches) |
| Rear suspension | WP |
| Rear wheel travel | 190 mm (7.5 inches) |
| Front brakes | Single disc. Bremo. Floating disc. Four-piston calipers. Radially mounted. Bosch 9M+ ABS |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Bremo. Floating disc. Single-piston caliper. Bosch 9M+ ABS |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 149.0 kg (328.5 pounds) |
| Power/weight ratio | 0.4500 HP/kg |
| Seat height | 835 mm (32.9 inches) If adjustable, lowest setting. |
| Ground clearance | 192 mm (7.6 inches) |
| Wheelbase | 1466 mm (57.7 inches) |
| Other specifications | |
| Color options | White/orange |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 13 KTM 690 Duke R discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
