| KTM's profilation of this bike |
| Uncompromising high-end motorcycling technology for riders who want it all: a racing precision chassis with the world´s most powerful series single-cylinder, an upgraded engine with 690cc, a crankshaft with greater stroke, new mapping and numerous detail optimisations provide an impressive 51.5 kW/70 Hp of power and a maximum torque of 70 Nm. |
|
General information |
|
Model name
|

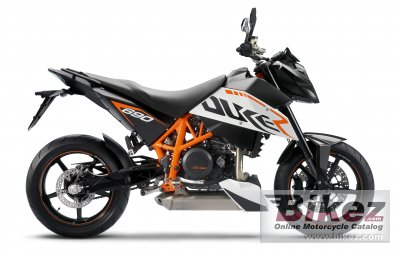

KTM 690 Duke R |
|
Model year
|
2011 |
|
Category
|
Naked bike |
|
Rating
|
4.0 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
690.0 ccm (42.10 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
69.1 HP (50.4 kW)) @ 7500 RPM |
|
Torque
|
70.0 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 5500 RPM |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
102.0 x 84.5 mm (4.0 x 3.3 inches) |
|
Fuel system
|
Injection. Keihin EFI with EPT (Electric Power Throttle) |
|
Fuel control
|
Overhead Cams (OHC) |
|
Lubrication system
|
Pressure lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
APTC slipper clutch, hydraulically operated |
|
Driveline
|
16:40. Primary drive: 36:79. |
|
Exhaust system
|
Stainless steel underfloor silencer with integrated catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium-Molybdenum trellis frame, powder coated. Subframe: Aluminium 7020. |
|
Rake (fork angle)
|
26.5° |
|
Trail
|
115 mm (4.5 inches) |
|
Front suspension
|
WP USD 48 mm (1.89 in) |
|
Front wheel travel
|
140 mm (5.5 inches) |
|
Rear suspension
|
WP mono shock with Pro-Lever linkage |
|
Rear wheel travel
|
140 mm (5.5 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
160/60-R17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
Cast aluminium wheels 3.5 x 17in., 5 x 17in. |
|
Physical measures and capacities |
|
Dry weight
|
148.0 kg (326.3 pounds) |
|
Power/weight ratio
|
0.4666 HP/kg |
|
Seat height
|
865 mm (34.1 inches) If adjustable, lowest setting. |
|
Ground clearance
|
155 mm (6.1 inches) |
|
Wheelbase
|
1472 mm (58.0 inches) |
|
Fuel capacity
|
13.50 litres (3.57 US gallons) |
|
Other specifications |
|
Color options
|
Orange/black/white |
|
Starter
|
Electric |
