| KTM's profilation of this bike |

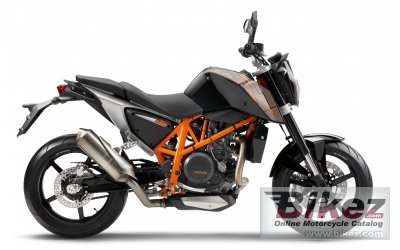

| Back then, KTM revived the pure, unadulterated single-cylinder motorcycle in the form of the ´original´ Duke. Judging by the latest 690 Duke that stands before us today, much has been gained: smoothness, room for a pillion passenger, long-distance ability. |
|
General information |
|
Model
|
KTM 690 Duke |
|
Year of manufacture
|
2012 |
|
Type
|
Naked bike |
|
Rating
|
3.8 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
690.0 ccm (42.10 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
67.0 HP (48.9 kW)) @ 7500 RPM |
|
Torque
|
67.0 Nm (6.8 kgf-m or 49.4 ft.lbs) @ 5500 RPM |
|
Compression
|
11.8:1 |
|
Bore x stroke
|
102.0 x 84.5 mm (4.0 x 3.3 inches) |
|
Ignition
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
|
Lubrication system
|
Semi-dry-sump lubrication with 2 rotor pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
APTC Anti-hopping clutch / hydraulically operated |
|
Driveline
|
16:40. Primary drive: 36:79. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular space frame made from chrome molybdenum steel, powder-coated |
|
Rake (fork angle)
|
26.5° |
|
Trail
|
115 mm (4.5 inches) |
|
Front suspension
|
WP Suspension 4357 |
|
Front wheel travel
|
135 mm (5.3 inches) |
|
Rear suspension
|
WP Suspension 4618 EM with Pro and #8209;Lever linkage |
|
Rear wheel travel
|
135 mm (5.3 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
160/60-R17 |
|
Front brakes
|
Single disc. Radially mounted four-piston brake caliper; floating brake disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Single-piston brake caliper, floating |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
150.0 kg (330.7 pounds) |
|
Power/weight ratio
|
0.4467 HP/kg |
|
Seat height
|
835 mm (32.9 inches) If adjustable, lowest setting. |
|
Ground clearance
|
192 mm (7.6 inches) |
|
Wheelbase
|
1466 mm (57.7 inches) |
|
Fuel capacity
|
13.50 litres (3.57 US gallons) |
|
Other specifications |
|
Color options
|
White/orange/black |
|
Starter
|
Electric |
