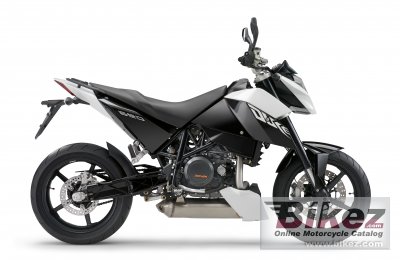

KTM 690 Duke 20092009 KTM 690 Duke specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| The exotic outsider just a few years ago, the Duke has long since created its own domain, including its own values. Or better said: performance values. If superathletes feared the Duke then, now it’s practically unbeatable. To ride the Duke you need skill, courage and of course: style! |
| General information | |
|---|---|
| Model | KTM 690 Duke |
| Year | 2009 |
| Category | Naked bike |
| Rating | 3.9 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 654.0 ccm (39.91 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 64.4 HP (47.0 kW)) @ 7500 RPM |
| Torque | 67.0 Nm (6.8 kgf-m or 49.4 ft.lbs) @ 5500 RPM |
| Compression | 11.8:1 |
| Bore x stroke | 102.0 x 80.0 mm (4.0 x 3.1 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Keihin EFI with EPT (Electr. Power Throttle) |
| Fuel control | Overhead Cams (OHC) |
| Lubrication system | Pressure lubrication with 2 Eaton pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Clutch | APTC Wet multi-disc clutch, operated hydraulically |
| Exhaust system | Stainless steel underfloor silencer with integrated catalytic converter |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium-Molybdenum trellis frame, powder coated. Aluminium 7020 subframe. |
| Front suspension | WP USD |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | WP mono shock with Pro-Lever linkage |
| Rear wheel travel | 140 mm (5.5 inches) |
| Front tire | 120/70-17 |
| Rear tire | 160/60-17 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 148.5 kg (327.4 pounds) |
| Power/weight ratio | 0.4334 HP/kg |
| Seat height | 865 mm (34.1 inches) If adjustable, lowest setting. |
| Ground clearance | 155 mm (6.1 inches) |
| Wheelbase | 1472 mm (58.0 inches) |
| Fuel capacity | 13.50 litres (3.57 US gallons) |
| Other specifications | |
| Color options | Orange, white, black |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 KTM 690 Duke discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2009 KTM 690 Duke for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this KTM bike | |
Reliability for the 2009 KTM 690 Duke:  (87.1 out of 100)Click here for complete rating. |
|
