| KTM's profilation of this bike |
| Minus the E-Starter Instead, this bike comes with massive power and performance as well as minimum weight. The Brembo 4-piston floating calliper front brake and the 320 disc will out-brake any opposition. |
|
General information |
|
Motorcycle name
|

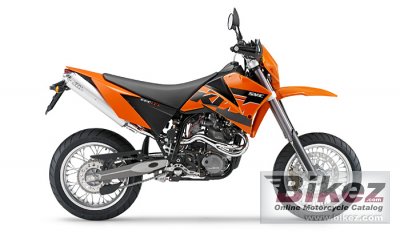

KTM 660 SMC |
|
Model year
|
2007 |
|
Category
|
Super motard |
|
Rating
|
3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
654.0 ccm (39.91 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
28.2 HP (20.6 kW)) @ 6250 RPM |
|
Torque
|
42.5 Nm (4.3 kgf-m or 31.3 ft.lbs) @ 3250 RPM |
|
Compression
|
11.7:1 |
|
Bore x stroke
|
102.0 x 80.0 mm (4.0 x 3.1 inches) |
|
Fuel system
|
Carburettor. Keihin MX FCR 41 |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Kokusan DC-CDI |
|
Lubrication system
|
Pressure lubrication with 2 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
2 x aluminium |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double ground, chrommoly-steel frame, powder-coated |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
99 mm (3.9 inches) |
|
Front suspension
|
WP USD |
|
Front wheel travel
|
115 mm (4.5 inches) |
|
Rear suspension
|
WP monoshock with Pro Lever |
|
Rear wheel travel
|
185 mm (7.3 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
160/60-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
138.0 kg (304.2 pounds) |
|
Power/weight ratio
|
0.2041 HP/kg |
|
Seat height
|
910 mm (35.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
290 mm (11.4 inches) |
|
Wheelbase
|
1510 mm (59.4 inches) |
|
Fuel capacity
|
9.20 litres (2.43 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
