KTM 65 SX 20132013 KTM 65 SX specifications, pictures, reviews and rating |

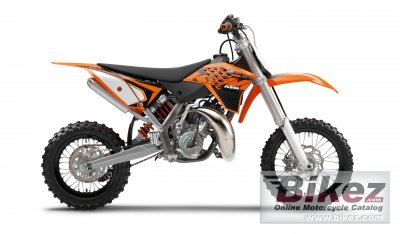

2013 KTM 65 SX. Image credits - KTM.
| KTM's profilation of this bike |
| The 2013 KTM 65 SX is just the right sports machine for all up-and-coming riders from 8 to 12 years of age and up to a height of about 1.60 m. With a six-speed transmission, generous suspension travel and high-quality components, the mini-crosser provides everything necessary for having plenty of fun and laying the foundations for a promising MX career. Its unrivalled peak power and fully-adjustable suspension components reinforce its claim to pole position. |
| General information | |
|---|---|
| Model | KTM 65 SX |
| Model year | 2013 |
| Category | Cross / motocross |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 64.9 ccm (3.96 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Engine details | Reed intake. |
| Bore x stroke | 45.0 x 40.8 mm (1.8 x 1.6 inches) |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
| Lubrication system | Mixture oil lubrication |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch / hydraulically operated |
| Driveline | 14:48. Primary drive: 23:75 straight cut spur gear. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central tube frame of chrome molybdenum steel tubing, powder-coated |
| Rake (fork angle) | 25.5° |
| Front suspension | WP Suspension USD 35 |
| Front wheel travel | 205 mm (8.1 inches) |
| Rear suspension | WP Suspension 3614 BAVP |
| Rear wheel travel | 185 mm (7.3 inches) |
| Front brakes | Single disc. Four-piston calipers. |
| Diameter | 198 mm (7.8 inches) |
| Rear brakes | Single disc. Two-piston calipers. |
| Diameter | 160 mm (6.3 inches) |
| Physical measures and capacities | |
| Dry weight | 55.5 kg (122.4 pounds) |
| Seat height | 750 mm (29.5 inches) If adjustable, lowest setting. |
| Ground clearance | 280 mm (11.0 inches) |
| Wheelbase | 1137 mm (44.8 inches) |
| Fuel capacity | 3.50 litres (0.92 US gallons) |
| Other specifications | |
| Color options | Orange/black |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 13 KTM 65 SX discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
