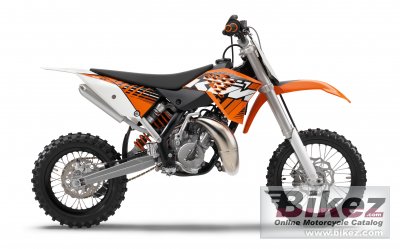

KTM 65 SX 20122012 KTM 65 SX specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| The KTM 65 SX is just the right sports machine for all up-and-coming riders from 8 to 12 years of age and up to a height of about 1.60 m (5.25 ft). With a six-speed transmission, generous suspension travel and high-quality components, the mini-crosser provides everything necessary for having plenty of fun and laying the foundations for a promising MX career. |
| General information | |
|---|---|
| Model name | KTM 65 SX |
| Year model | 2012 |
| Type | Minibike, cross |
| Rating | 3.5 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 64.9 ccm (3.96 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Engine details | Reed intake and exhaust control |
| Bore x stroke | 45.0 x 40.8 mm (1.8 x 1.6 inches) |
| Fuel system | Carburettor. Mikuni TM 24 |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
| Lubrication system | Mixture oil lubrication 1:60 |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet mDouble disk clutch, operated hydraulically |
| Driveline | 14:48 Primary. 23:75 straight cut spur gear. |
| Exhaust system | Aluminium |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central tube frame of chrome molybdenum steel tubing, powder-coated |
| Rake (fork angle) | 25.5° |
| Front suspension | WP Suspension USD 35 |
| Front wheel travel | 215 mm (8.5 inches) |
| Rear suspension | WP Suspension 3614 BAVP |
| Rear wheel travel | 270 mm (10.6 inches) |
| Front tire | 60/100-14 |
| Rear tire | 80/100-12 |
| Front brakes | Single disc |
| Diameter | 198 mm (7.8 inches) |
| Rear brakes | Single disc |
| Diameter | 160 mm (6.3 inches) |
| Wheels | 1.6 x 14in., 1.6 x 12in. Alu |
| Physical measures and capacities | |
| Dry weight | 55.4 kg (122.1 pounds) |
| Seat height | 750 mm (29.5 inches) If adjustable, lowest setting. |
| Ground clearance | 280 mm (11.0 inches) |
| Wheelbase | 1137 mm (44.8 inches) |
| Fuel capacity | 3.50 litres (0.92 US gallons) |
| Other specifications | |
| Color options | Orange/black/white |
| Starter | Kick |
