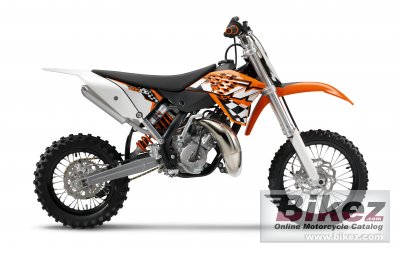

| KTM's profilation of this bike |
| Factory technology in miniature: an absolutely fully-fledged sports machine and pretty much an adult bike, unlike the other bikes in this class. Designed for up-and-coming riders from about 8 to 12 years and up to a height of 160cm. |
|
General information |
|
Model
|
KTM 65 SX |
|
Year model
|
2011 |
|
Type
|
Minibike, cross |
|
Rating
|
3.6 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
64.9 ccm (3.96 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Bore x stroke
|
45.0 x 40.8 mm (1.8 x 1.6 inches) |
|
Fuel system
|
Carburettor. Mikuni TM 24 |
|
Ignition
|
AET digital |
|
Lubrication system
|
Mixture oil lubrication 1:60 |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet mDouble disk clutch, operated hydraulically |
|
Driveline
|
14:50. Primary drive: 23:75. |
|
Exhaust system
|
Aluminium |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double grinded central double-cradle-type frame. Subframe: Aluminium. |
|
Rake (fork angle)
|
25.5° |
|
Front suspension
|
Marzocchi USD 35 mm (1.38 in) |
|
Front wheel travel
|
185 mm (7.3 inches) |
|
Rear suspension
|
WP mono shock |
|
Rear wheel travel
|
185 mm (7.3 inches) |
|
Front tire
|
60/100-14 |
|
Rear tire
|
80/100-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
198 mm (7.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
160 mm (6.3 inches) |
|
Wheels
|
1.6 x 14in., 1.6 x 12in. Alu |
|
Physical measures and capacities |
|
Dry weight
|
55.4 kg (122.1 pounds) |
|
Seat height
|
750 mm (29.5 inches) If adjustable, lowest setting. |
|
Ground clearance
|
280 mm (11.0 inches) |
|
Wheelbase
|
1137 mm (44.8 inches) |
|
Fuel capacity
|
3.50 litres (0.92 US gallons) |
|
Other specifications |
|
Color options
|
Orange, black, white |
|
Starter
|
Kick |
