KTM's profilation of this bike |
With the 65 SX, the development engineers at KTM have succeeded in setting a real milestone in orange. With it, you get an SX bike which need not hide even from the big motocross riders. |
General information |
Motorcycle name
|

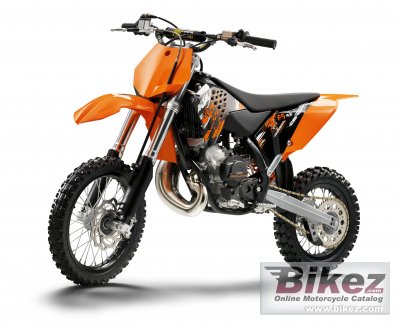

KTM 65 SX |
Year
|
2009 |
Category
|
Minibike, cross |
Rating
|
3.6 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
64.9 ccm (3.96 cubic inches) |
Engine type
|
Single cylinder, two-stroke |
Bore x stroke
|
45.0 x 40.8 mm (1.8 x 1.6 inches) |
Fuel system
|
Carburettor. Mikuni VM 24 |
Ignition
|
Moric digital 2M1 |
Lubrication system
|
Mixture lubrication |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet multi-disc clutch, operated hydraulically |
Exhaust system
|
Aluminium |
Chassis, suspension, brakes and wheels |
Frame type
|
Double grinded central double-cradle-type frame. Aluminium subframe. |
Rake (fork angle)
|
25.5° |
Front suspension
|
Marzocchi, 35 mm |
Front wheel travel
|
220 mm (8.7 inches) |
Rear suspension
|
WP monoshock |
Rear wheel travel
|
270 mm (10.6 inches) |
Front tire
|
60/100-14 |
Rear tire
|
80/100-12 |
Front brakes
|
Single disc. Bremo |
Diameter
|
200 mm (7.9 inches) |
Rear brakes
|
Single disc. Bremo |
Diameter
|
160 mm (6.3 inches) |
Physical measures and capacities |
Dry weight
|
55.6 kg (122.6 pounds) |
Seat height
|
750 mm (29.5 inches) If adjustable, lowest setting. |
Ground clearance
|
280 mm (11.0 inches) |
Wheelbase
|
1137 mm (44.8 inches) |
Fuel capacity
|
3.30 litres (0.87 US gallons) |
Other specifications |
Color options
|
Orange/black |
Starter
|
Kick |
Comments
|
Intended for children. |
