| KTM's profilation of this bike |
| So uncompromising like the big bikes, not only in appearance. For junior world champions ages 9 and up. With adequate competition chassis, disc brakes front and rear, liquid cooled racing engine with 6-gear shift mechanism and hydraulic clutch. |
|
General information |
|
Motorcycle name
|

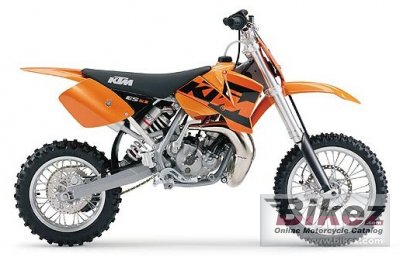

KTM 65 SX |
|
Year of manufacture
|
2004 |
|
Type
|
Minibike, sport |
|
Rating
|
3.7 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
64.9 ccm (3.96 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Bore x stroke
|
45.0 x 40.8 mm (1.8 x 1.6 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium molybdenum central-type frame |
|
Rake (fork angle)
|
25.5° |
|
Front suspension
|
USD Marzocchi Ø 35 mm |
|
Rear suspension
|
WP monoshock |
|
Front brakes
|
Single disc |
|
Diameter
|
216 mm (8.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
216 mm (8.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
55.6 kg (122.6 pounds) |
|
Seat height
|
750 mm (29.5 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
675 mm (26.6 inches) If adjustable, highest setting. |
|
Ground clearance
|
290 mm (11.4 inches) |
|
Wheelbase
|
1137 mm (44.8 inches) |
|
Fuel capacity
|
3.30 litres (0.87 US gallons) |
|
Other specifications |
|
Color options
|
Orange |
