| KTM's profilation of this bike |
| It’s all the same if you’re on your way to work through the city, out on your favourite stretch of open road or on the Supermoto circuit. With it’s zippy engine, slick handling and sensational optics, the 640 LC4 Supermoto is always going to have the edge. |
|
General information |
|
Motorcycle name
|

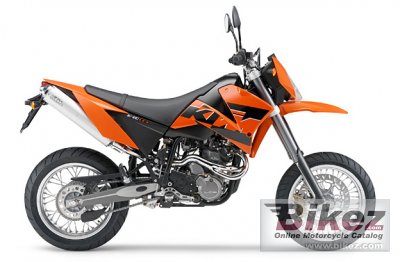

KTM 640 LC4 Supermoto |
|
Year model
|
2007 |
|
Type
|
Super motard |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
625.0 ccm (38.14 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
53.6 HP (39.2 kW)) @ 6750 RPM |
|
Torque
|
60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 5750 RPM |
|
Compression
|
11.7:1 |
|
Bore x stroke
|
101.0 x 78.0 mm (4.0 x 3.1 inches) |
|
Fuel system
|
Carburettor. Mikuni BST 40 |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Kokusan DC-CDI |
|
Lubrication system
|
Pressure lubrication with 2 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
2 x aluminium |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double ground, chrommoly-steel frame, powder-coated |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
99 mm (3.9 inches) |
|
Front suspension
|
WP USD |
|
Front wheel travel
|
115 mm (4.5 inches) |
|
Rear suspension
|
WP monoshock with Pro Lever |
|
Rear wheel travel
|
185 mm (7.3 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
160/60-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
149.0 kg (328.5 pounds) |
|
Power/weight ratio
|
0.3600 HP/kg |
|
Seat height
|
910 mm (35.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
280 mm (11.0 inches) |
|
Wheelbase
|
1510 mm (59.4 inches) |
|
Fuel capacity
|
9.20 litres (2.43 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
