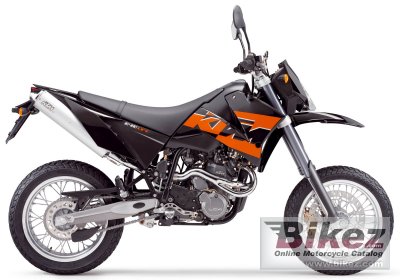

KTM 640 LC4 SMC Black 20052005 KTM 640 LC4 SMC Black specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | KTM 640 LC4 SMC Black |
| Year model | 2005 |
| Type | Super motard |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 625.0 ccm (38.14 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 53.6 HP (39.2 kW)) @ 6750 RPM |
| Torque | 60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 5750 RPM |
| Compression | 11.7:1 |
| Bore x stroke | 101.0 x 78.0 mm (4.0 x 3.1 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Mikuni BST 40 |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Kokusan DC-CDI |
| Lubrication system | Pressure lubrication with 2 Eaton pumps |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium-molybdenum, power-coated |
| Rake (fork angle) | 27.0° |
| Trail | 99 mm (3.9 inches) |
| Front suspension | WP-USD 48 mm (1.89´ |
| Rear suspension | WP - Monoshock |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 120/70-17 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 149.0 kg (328.5 pounds) |
| Power/weight ratio | 0.3600 HP/kg |
| Seat height | 910 mm (35.8 inches) If adjustable, lowest setting. |
| Overall height | 640 mm (25.2 inches) |
| Overall width | 640 mm (25.2 inches) |
| Ground clearance | 280 mm (11.0 inches) |
| Wheelbase | 1510 mm (59.4 inches) |
| Fuel capacity | 11.20 litres (2.96 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric & kick |
| Comments | Not available in the USA. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 05 KTM 640 LC4 SMC Black discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2005 KTM 640 LC4 SMC Black discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this KTM bike | |
Engine performance for the 2005 KTM 640 LC4 SMC Black:  (81.8 out of 100)Click here for complete rating. |
|
